AMBULANCE SYSTEMS
Telemedica supplies a wide range of solutions for gas supply systems for ambulances, from base alarms with only LEDs to TFT touch panel, performing also advanced features as integration in ambulance CAN bus or other local network, as connection to internet remote control systems or as Internet of Things, thus to allow real time control and even other feature as geolocalization systems.

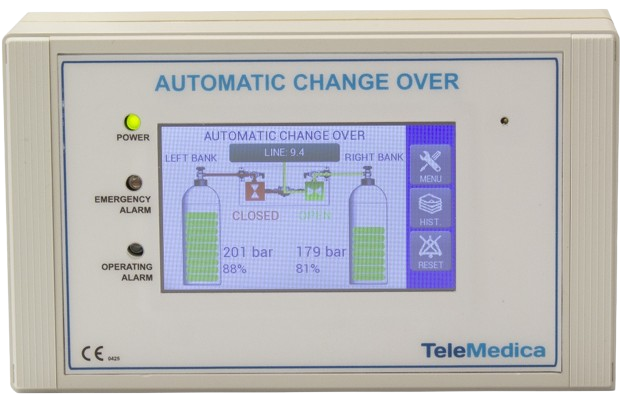

TFT Unit
4.3″ TFT touchscreen unit that shows:
– graphical filling of cylinders in percentage, different colors for the state of the source (green if OK, yellow if in pre-alarm, red if in alarm);
– the real pressure in each cylinder and the line output pressure;
– the active working source;
– all the strings of the alarms eventually running.
The acoustic alarm can be silenced touching related button on the screen.
The unit can perform the automatic switching over of the source and also allows the operator to manually switch pressing the related button.
Needs transducers and electrovalves (if the switching has to be operated by the unit).

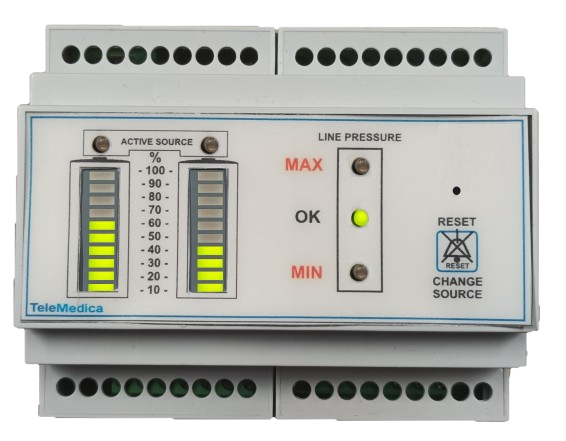

Bargraph Unit
LEDs for line (pressure alarms min/max, OK), triple color bargraph for left and right sources, showing as percentage bars the filling of cylinder, alarm and pre-alarm (green if OK, yellow if in pre-alarm, red if in alarm), LEDs to indicate the working source, acoustical alarm.
The unit can perform the automatic switching over of source and also allows the operator to switch by himself.
Needs transducers and electrovalves (if the switching has to be operated by the unit).

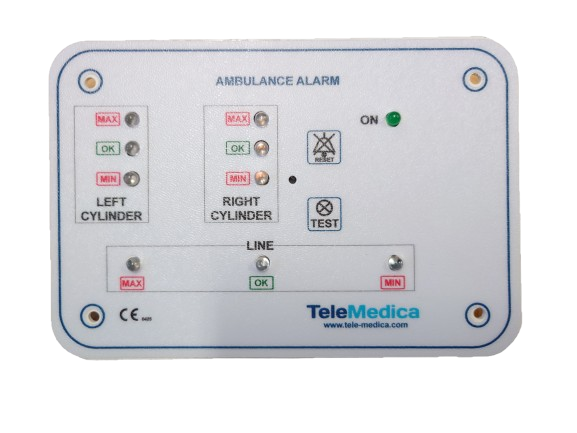

LEDs Unit
LEDs for line (pressure alarms min/max, OK), LEDs for left and right sources (pressure alarms min/max or pre-alarm/min, OK), working source indication, acoustical alarm sound.
Needs only pressure switches.
To complete the system
are also available:

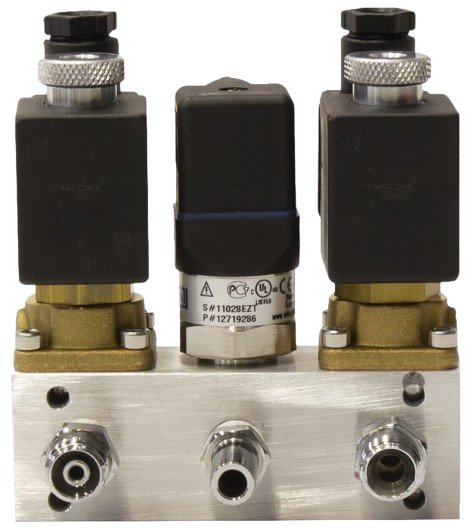

Pressure reducers, changing over, pressure switches, transducers, electrovalves
